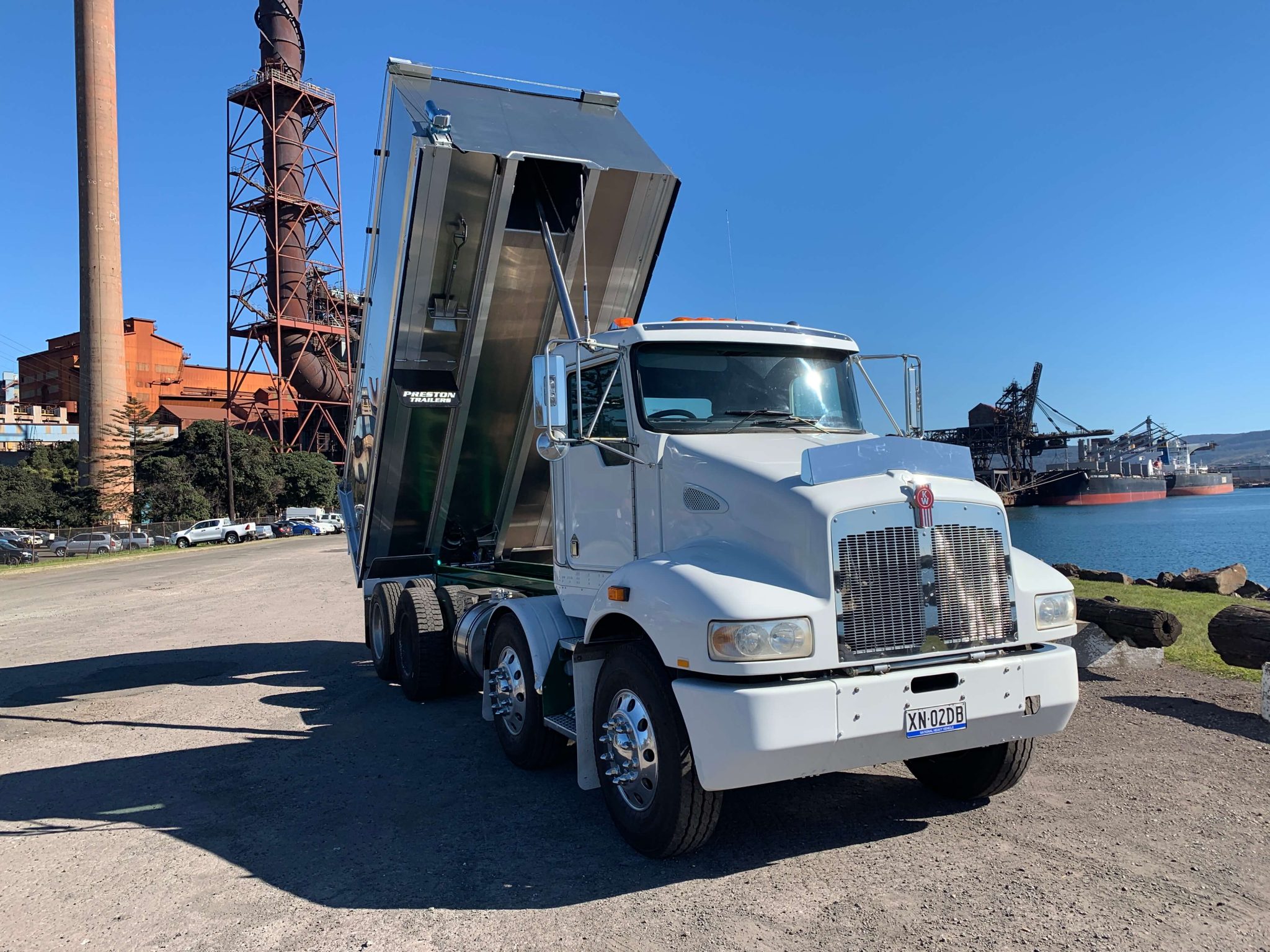

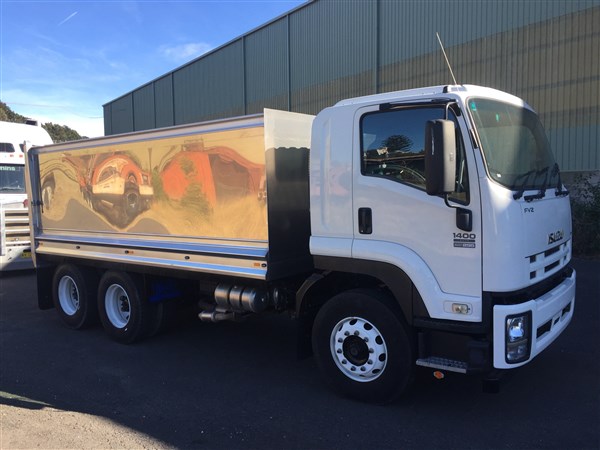

aluminium tipper bodies
Specifications:
All our bodies are highly customisable.
A standard configuration is shown in the table below:
- Body: – Constructed using high tensile aluminium plate with exclusive extrusions.
- Chassis: – Continously formed top flange / body support profile and fully welded high tensile bottom flange. Solid bright pivot bar in hardened steel bushes.
- Floor: – Standard 8mm thick aluminium plate welded directly to the main beams and chamfered lower corner extrusion.
- Sides: – 5mm thick Mill Bright aluminium plate welded to top coaming and lower corner extrusion.Front Wall: – 6.3mm thick aluminium.
- Top Rail: – Heavy duty tapered top extrusion.
- Tailgate: – 5mm thick Mill Bright Aluminium plate with large heavy duty offset hinged with one-way swing. Available as a two-way swing option.
- Splashguard: – Fitted to the full length of the trailer, incorporating LED side marker lights and anti-spray suppressant.
- Back Section: – Manufactured from specially extruded sections which incorporates a replaceable rubber extrusion to reduce wear and provide a tight seal to the tailgate.
- Hoist & Hydraulics: – To suit truck make & application.
- Towbar: – Ringfeder or Rockinger coupling. Auto coupling and cab alarms offered as an option.

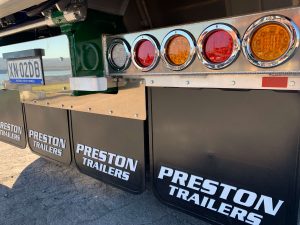

- Lighting: – LED lights to ADR45.
- Options: – Toolboxes / Water Tanks / Grain Doors / Sludge Locks / Rock Lining / Spill Tray / In-Cab PTO & Hoist alarms / Digital Weight Scales and more.
Call or email our team with your requirements and we will customise our quote to suit:
